Rubber Insulation Pipe

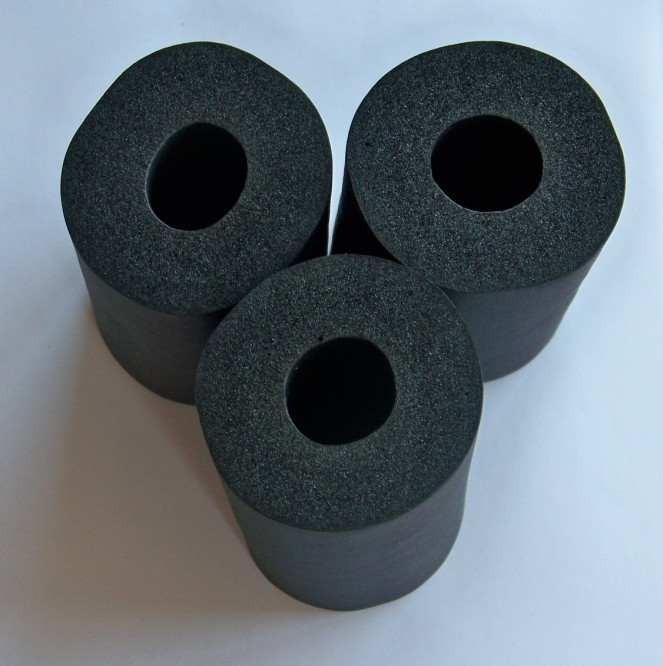

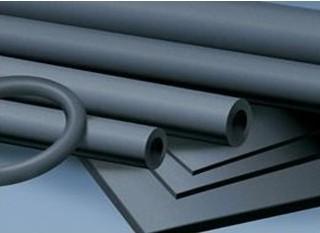

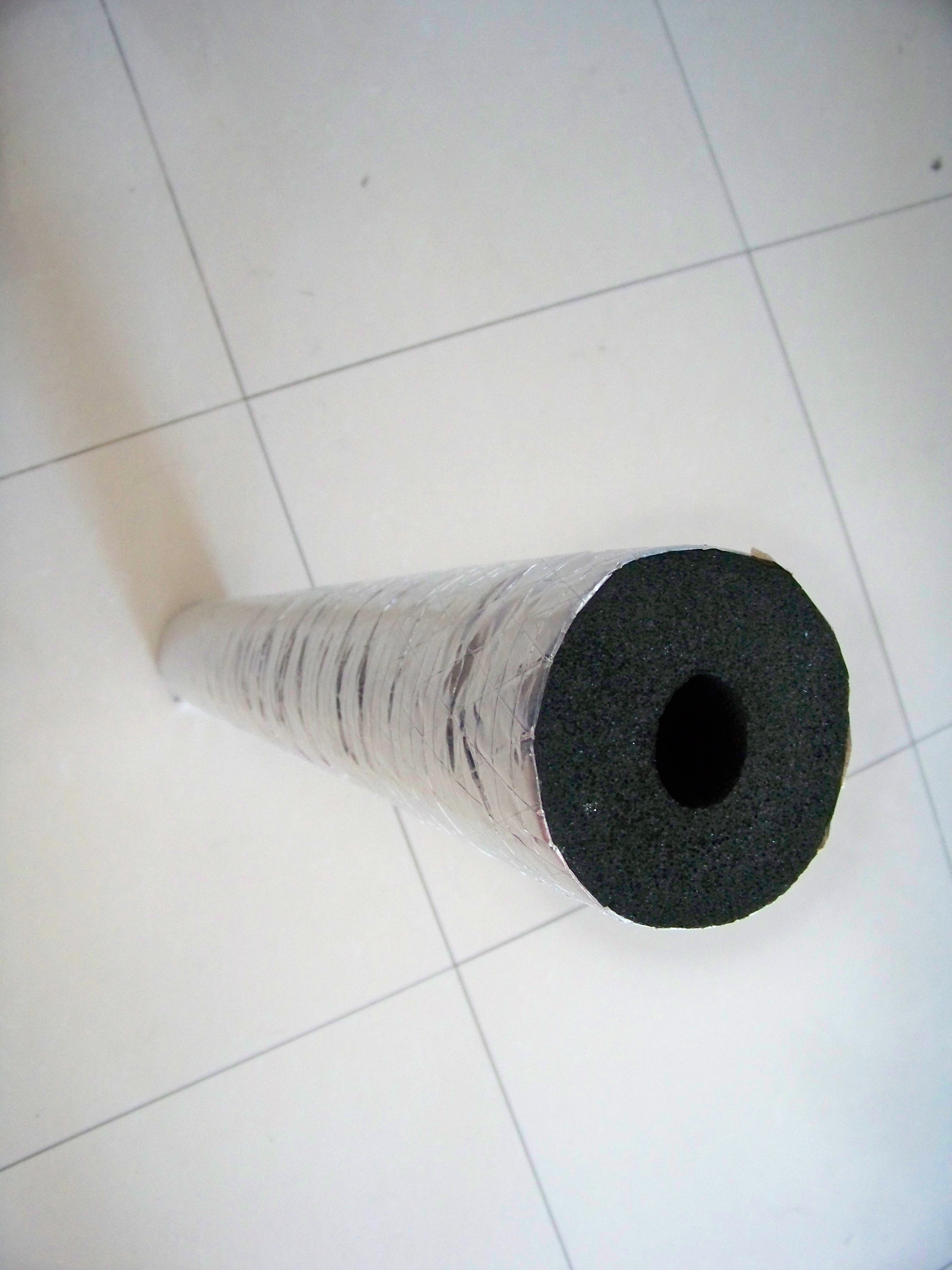

Product introduction of the rubber insulation pipe
FANRYN CLASS B1 Rubber Plastic Insulation Pipe is a flexible, closed-cell insulation material designed for superior thermal performance and moisture resistance. Its black finish is not only aesthetically pleasing but also highly functional. With low thermal conductivity and excellent fireproof properties, it is ideal for use in air conditioning systems, particularly for chilled water and condensate pipes. The material ensures energy efficiency, reduces heat loss, and prevents condensation buildup, making it a reliable choice for commercial and residential HVAC applications.
Production details of the rubber insulation pipe
Product parameter of the Class B0 rubber insulation pipe
| Item |
Unit |
Specification |
Standard |
| Density |
Kg/m3 |
40~90 |
GB/T 6343 |
| Temperature |
℃ |
-50~110 |
GB/T 17794 |
| Flammability |
—— |
B |
GB/T 8624-2006 |
| B1 |
BS476Part 7∝Part6 |
| Oxy gen index |
% |
≥40 |
GB/T 2406 |
| SDR |
|
≤65 |
GB 8627-1999 |
Conductivity factor
Average temperature
-20℃
0℃
40℃ |
W/(m·k) |
≤0.031
≤0.034
≤0.036 |
GB/T 10294 |
| Water vapor permeability |
Factor |
—— |
≥1.0*104 |
GB/T 17146-1997 |
| coefficient |
g/(m.s.pa) |
≤1.96*10-11 |
| Water absorption ratio in vacuum |
% |
≤10 |
GB/T 17794-2008 |
Dimension stability
105±3℃,7d |
% |
≤10 |
GB/T 8811 |
| Crack resistance |
N/cm |
≥2.5 |
GB/T 10808 |
| Compression resilience ratio |
% |
≥70 |
GB/T 6669 |
| Anti-ozone |
—— |
Not cracking |
GB/T 7762 |
| Agin resistance |
—— |
Slightly crumpling,no cracks,no pin holes,not deforming |
GB/T 16259 |
Product size of the rubber insulation pipe
| Tube inner diameter (mm) |
9mm thick
(1.8m/piece) |
15mm thick
(2m/piece) |
20mm thick
(2m/piece) |
25mm thick
(2m/piece) |
Size
(mm*mm) |
Piece |
Piece/box |
Size
(mm*mm) |
Piece |
Size
(mm*mm) |
Piece |
Size
(mm*mm) |
Piece |
| 6 |
6*9 |
180 |
180 |
|
|
|
|
|
|
| 10 |
10*9 |
140 |
140 |
10*15 |
80 |
10*20 |
70 |
|
|
| 13 |
13*9 |
120 |
100 |
13*15 |
80 |
13*20 |
50 |
|
|
| 16 |
16*9 |
100 |
95 |
16*15 |
60 |
16*20 |
50 |
|
|
| 19 |
19*9 |
100 |
80 |
19*15 |
60 |
19*20 |
40 |
|
|
| 22 |
22*9 |
100 |
70 |
22*15 |
60 |
22*20 |
40 |
22*25 |
30 |
| 25 |
25*9 |
80 |
55 |
25*15 |
60 |
25*20 |
30 |
25*25 |
25 |
| 28 |
28*9 |
60 |
50 |
28*15 |
50 |
28*20 |
30 |
28*25 |
25 |
| 32 |
32*9 |
60 |
45 |
|
|
|
|
|
|
| 34 |
|
|
|
34*15 |
40 |
34*20 |
30 |
34*25 |
25 |
| 35 |
35*9 |
60 |
40 |
|
|
|
|
|
|
|
38*9 |
50 |
30 |
|
|
|
|
|
|
| 42 |
42*9 |
50 |
30 |
|
|
|
|
|
|
| 43 |
43*9 |
50 |
30 |
43*15 |
30 |
43*20 |
25 |
43*25 |
20 |
| 48 |
48*9 |
50 |
28 |
48*15 |
30 |
48*20 |
25 |
48*25 |
20 |
| 54 |
54*9 |
50 |
25 |
|
|
|
|
|
|
| 60 |
60*9 |
50 |
20 |
60*15 |
30 |
60*20 |
20 |
60*25 |
15 |
| 76 |
|
|
|
76*15 |
25 |
76*20 |
15 |
76*25 |
15 |
| 89 |
|
|
|
|
|
89*20 |
15 |
89*25 |
15 |
| 108 |
|
|
|
|
|
108*20 |
15 |
108*25 |
10 |
Product feature of the rubber insulation pipe
- Low thermal conductivity factor
- Good fireproof property
- Vibration resistance
- Closed pore foaming good moisture resistance
- Good pliability
- Beautiful appearance and easy to install
- Good energy saving property
Product application of the rubber insulation pipe
- Chilled water pipes, condense pipes, air ducts and hot-water pipes of air-conditioning equipment
- Heat preservation and insulation of central air-conditioning system
- Every kind of cold/hot medium piping
Production packing of the rubber insulation pipe
Packing
- PE plastic bag
- PE plastic bag +carton
Note: OEM is acceptable
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usual 15-20 work days after placing order.
Q4: What is your advantage on rubber insulation pipe?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
