Custom Reinforced Insulated Flexible Duct Aluminum Air Duct with Temperature Range -30 to +250°C and Fiberglass Insulation 25-50mm

Custom Reinforced Insulated Flexible Duct Aluminum Air Duct with Temperature Range -30 to +250°C and Fiberglass Insulation 25-50mm
Custom Reinforced Insulated Flexible Duct Aluminum Air Duct with Temperature Range -30 to +250°C and Fiberglass Insulation 25-50mm Custom Reinforced Insulated Flexible Duct Aluminum Air Duct with Temperature Range -30 to +250°C and Fiberglass Insulation 25-50mm Custom Reinforced Insulated Flexible Duct Aluminum Air Duct with Temperature Range -30 to +250°C and Fiberglass Insulation 25-50mm Custom Reinforced Insulated Flexible Duct Aluminum Air Duct with Temperature Range -30 to +250°C and Fiberglass Insulation 25-50mm Custom Reinforced Insulated Flexible Duct Aluminum Air Duct with Temperature Range -30 to +250°C and Fiberglass Insulation 25-50mm
Informacion basica
Cantidad de orden mínima: 500
Precio: 0.1-15$
Detalles de empaquetado: Bolsa de plástico+cartón
Tiempo de entrega: 7-10 días
Condiciones de pago: T/T
Capacidad de la fuente: 10000 PCS
Mejor precio Contactar ahora
Información detallada
Material: papel de aluminio/mascota/lana de vidrio/malla de alambre Solicitud: Ventilación
Forma: Ronda formada Rango de temperatura: -30 - +250 grados Celsius
Rango de diámetro: 80 mm - 610 mm Color: Plata
Radio de curvatura: 0.54*d+25 mm Espesor del aislamiento de fibra de vidrio: 25-50 mm
Densidad del aislamiento de fibra de vidrio: 16-32 kg/m3
Resaltar:

insulated flexible aluminum foil duct

,

custom reinforced coat air duct

,

thermal insulation flexible aluminum duct

Descripción de producto

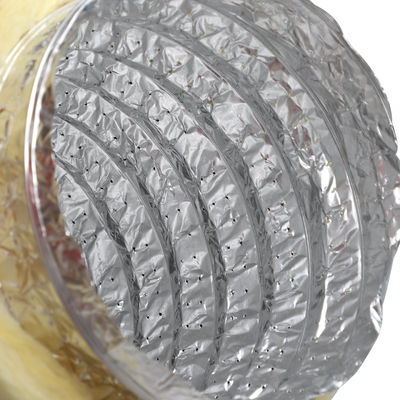

Custom Reinforced Coat Insulated Flexible Aluminum Foil Air Duct
Factory air conditioning and HVAC system insulated duct for efficient thermal management.

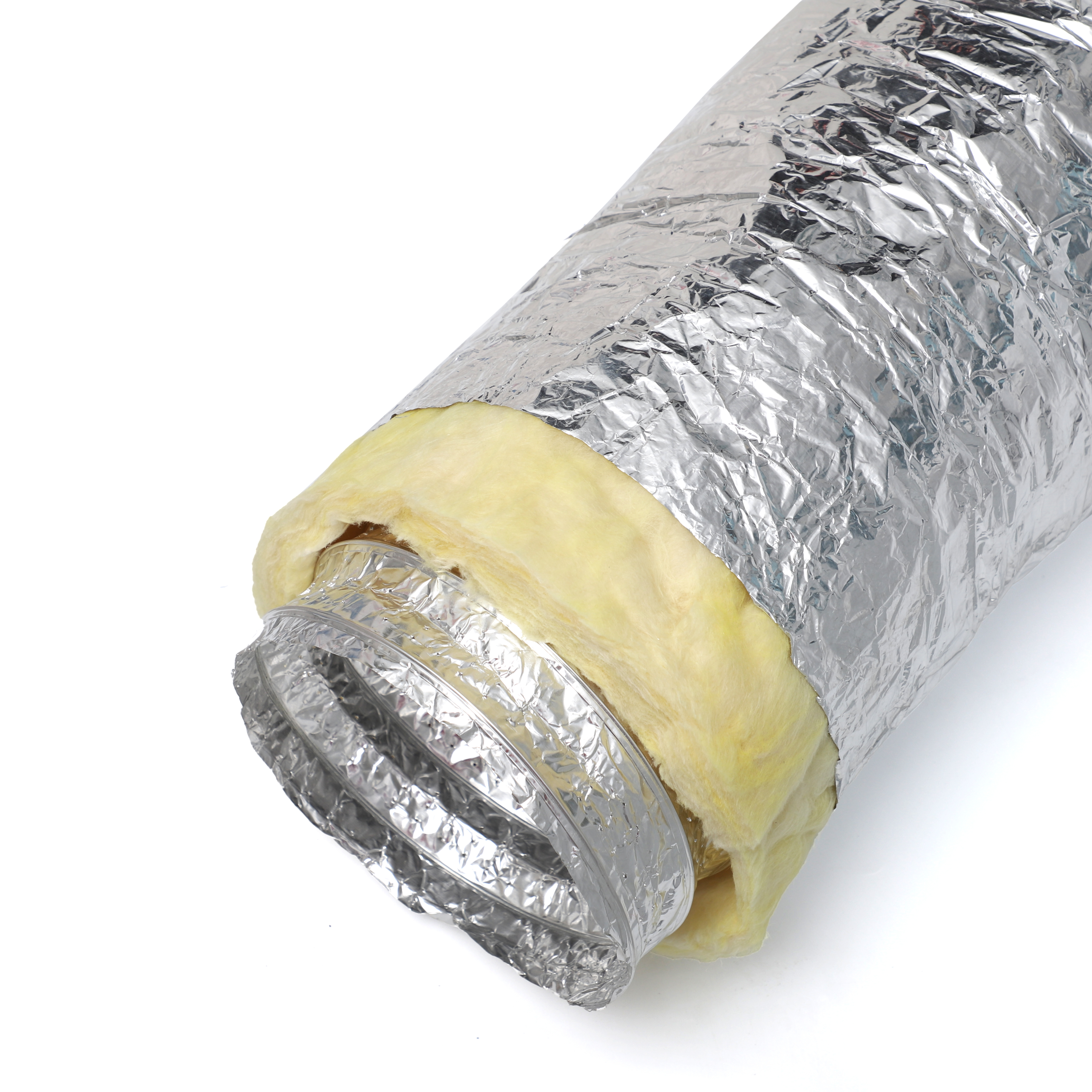

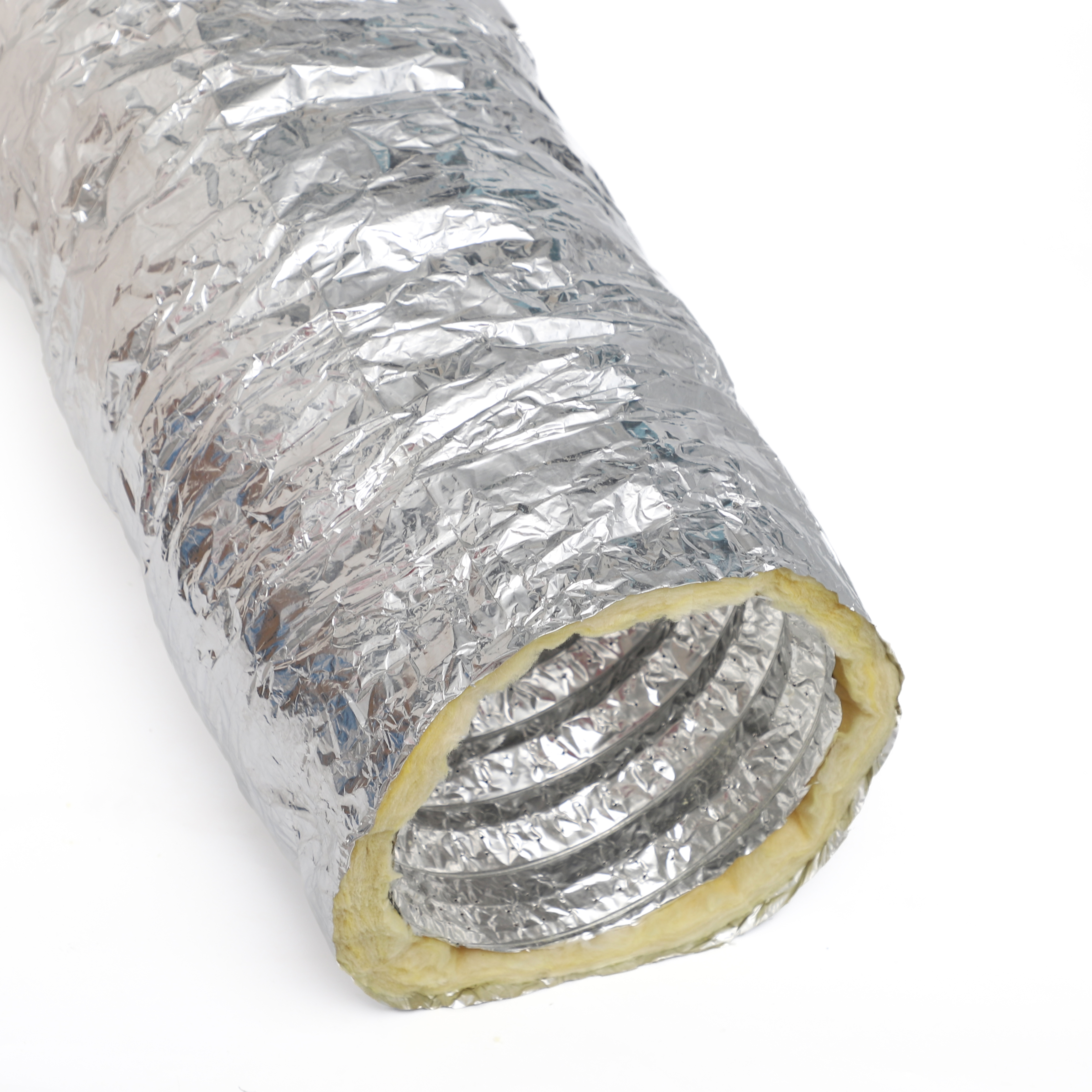

Insulated flexible aluminum duct cross-section diagram Insulated flexible aluminum duct product view
Technical Specifications
PropertyValue
Diameter Range80 ~ 610mm (3"~ 24")
Temperature Range-30 ~ +250 °C
Velocity of Air Flow (Max.)30 m/s
Working Pressure2500 Pa/3000 Pa
Bending Radius0.54*D+25mm
Thickness of Fiberglass Insulation25-50mm
Density of Fiberglass Insulation16~32kg/m³
Standard Length5 ~ 10m

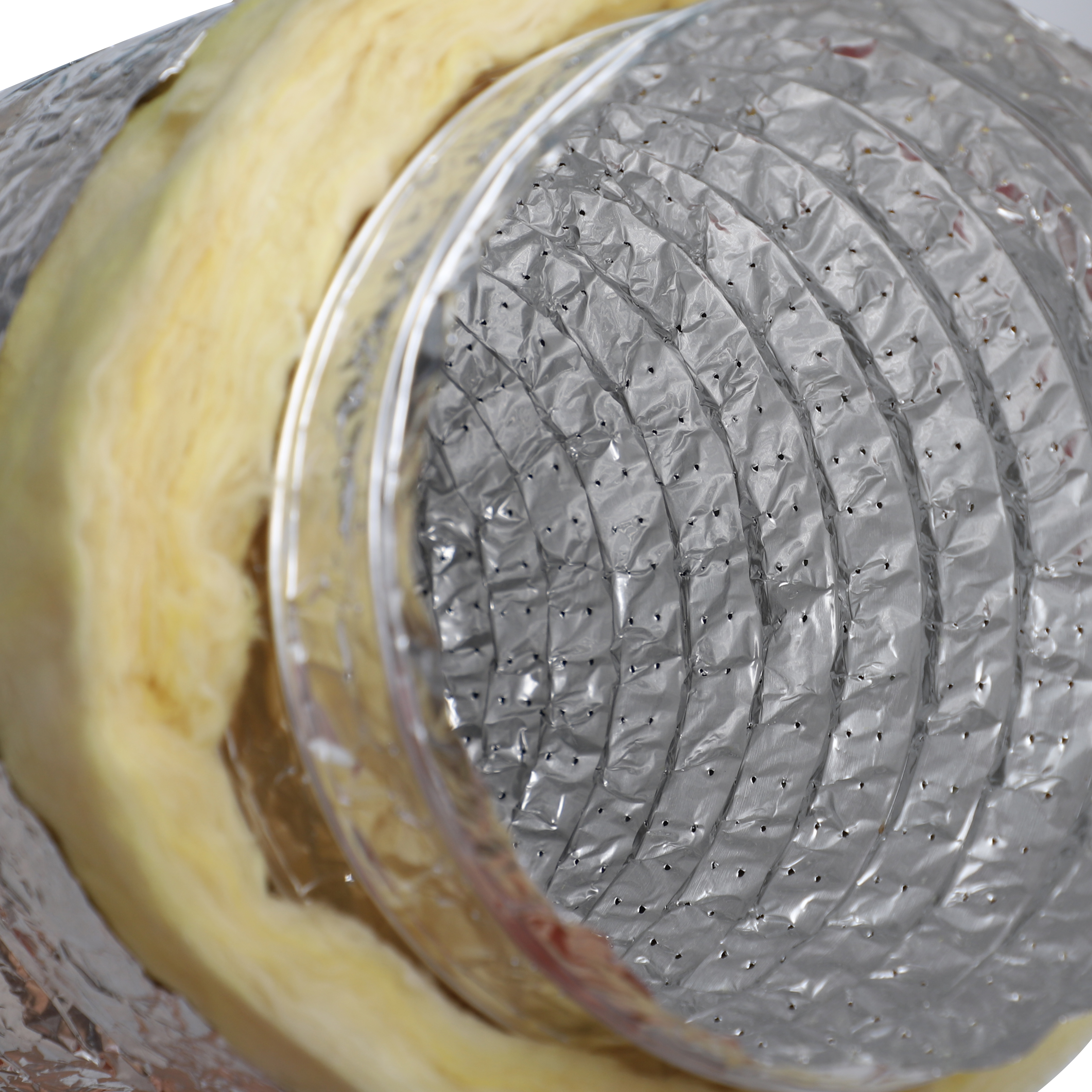

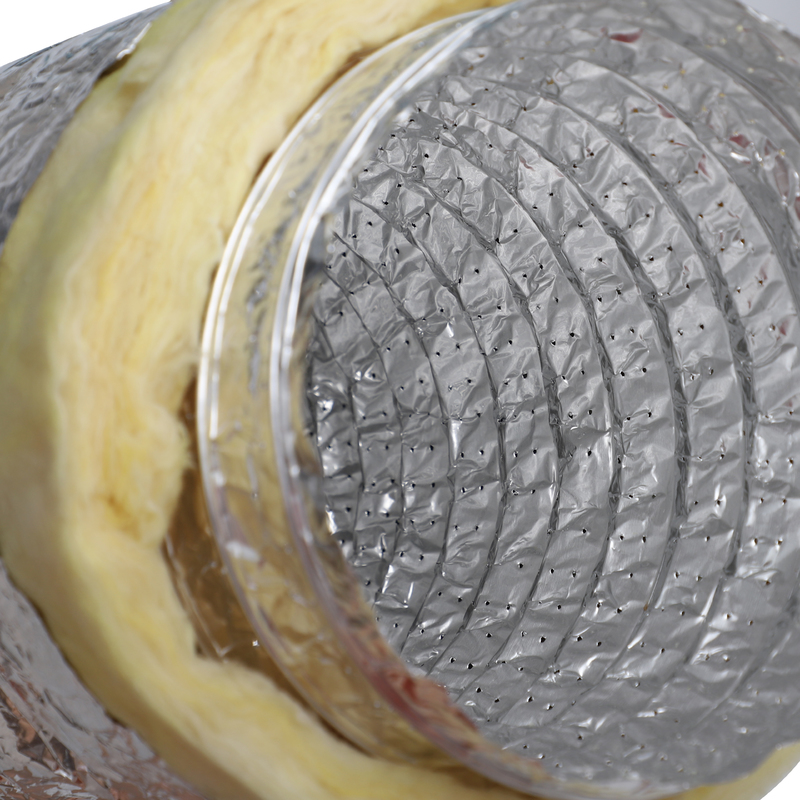

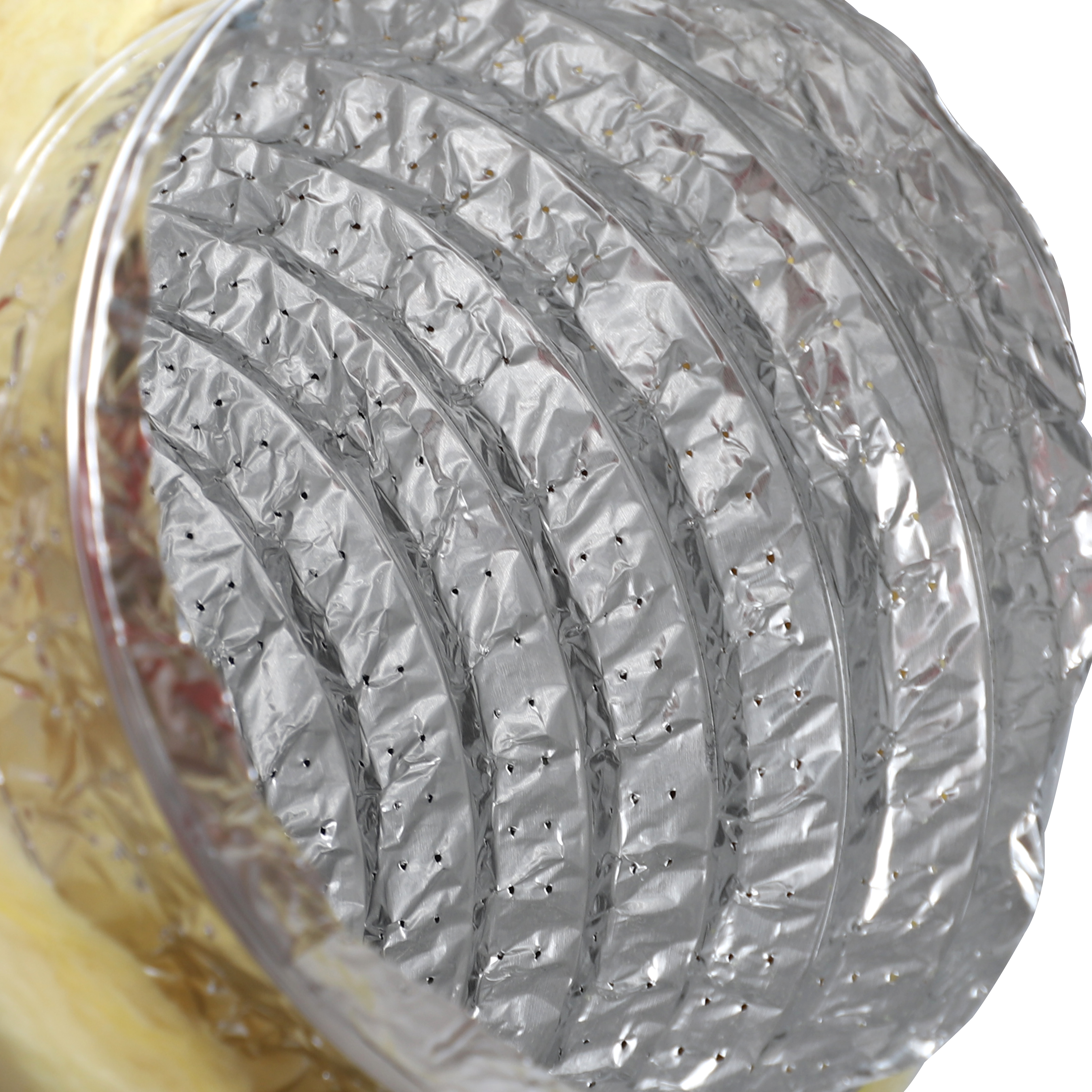

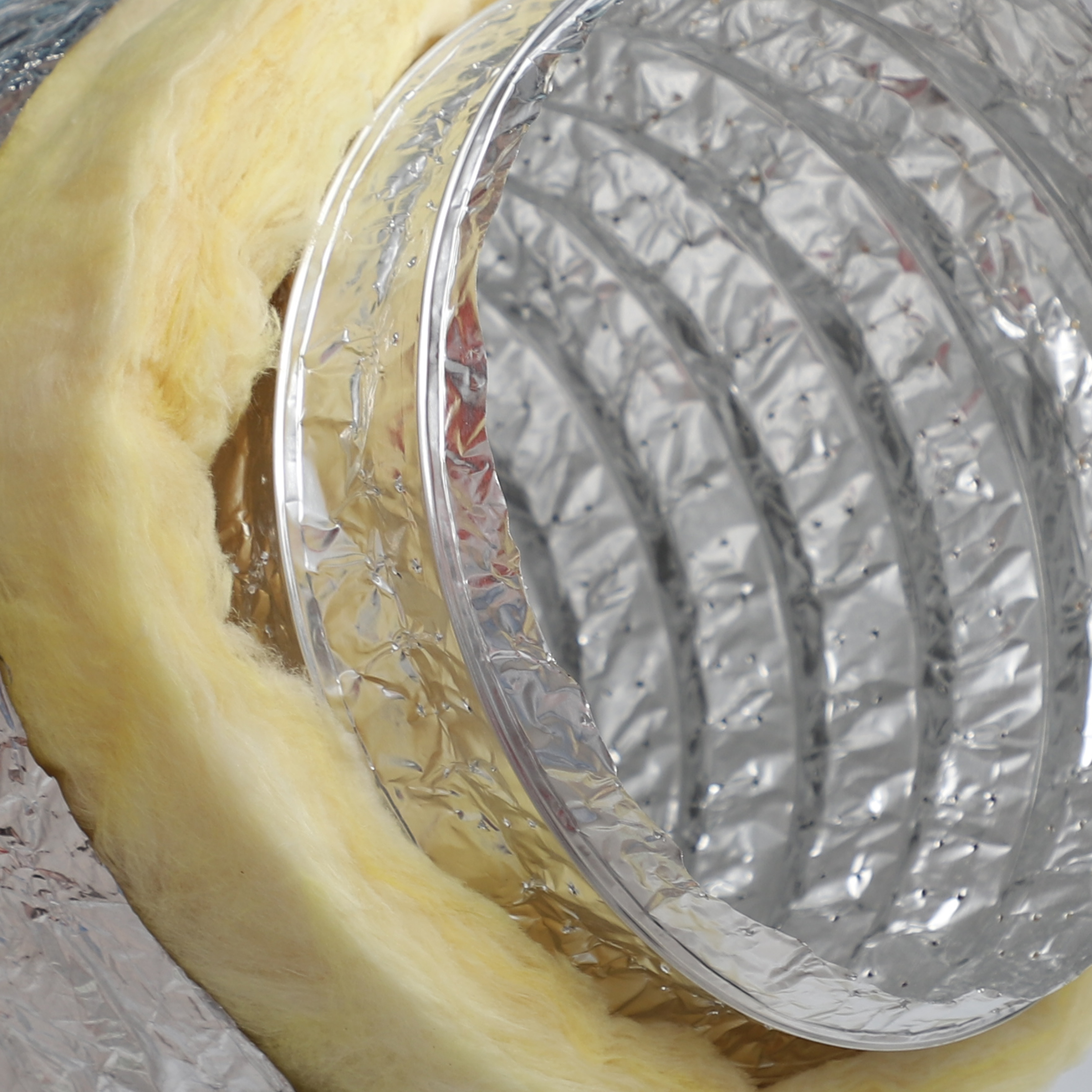

Flexible duct installation example Duct connection detail Duct bending demonstration Duct insulation layer close-up Duct application in HVAC system
Product Features and Applications
  • Slightly perforated inner core covered by fiberglass insulation and aluminum/polyester laminated outer jacket
  • Excellent fire resistance and acoustic performance with superior thermal insulation and flexibility
  • Effectively reduces heat and cooling loss while preventing condensation
Packaging
Duct packaging diagram Duct packaged for shipping
Click here to see all our products
Duct manufacturing process Quality control inspection Finished duct product showcase
Frequently Asked Questions
Can you serve free samples and how can I get them?
Yes, as one of the largest ventilation duct products manufacturers in China, we are able to offer free samples for your testing.
Can this be used for a range hood exhaust?
Suitable for use with heating, ventilation and air conditioning systems.
Can the duct be cut to length as needed?
Yes, absolutely.
Where can the duct be used for?
Ideal for heating and A/C systems and various ventilation applications.
What are the benefits of your flexible ducts?
Made of high-quality flame-retardant aluminum, they offer excellent flexibility and easy installation.
Are you a manufacturer?
Yes, we are a professional manufacturer with several years of manufacturing and overseas sales experience, cooperating with distributors worldwide.
