Información detallada

Material:	Lana de vidrio	Temperatura de servicio:	300°C, 350°C, 400°C
Calificación de fuego:	Clase A	Función:	Aislamiento Térmico
Amigable con el medio ambiente:	Ecológico	Grado de combustibilidad:	GradeA no combustible
Resistencia a la humedad:	No absorbente	Método de instalación:	Fácil de cortar e instalar
Absorción de sonido:	0,8-1,05	Resistencia a la compresión:	A
Garantía:	Más de 5 años	Conductividad térmica:	0.038W/mK
Ámbito de aplicación:	Aislamiento del aire acondicionado	Forma:	Cuadrado
Tipo:	Resistente al frío y al calor	Densidad:	10-48 kg/m3, 10-100 kg/metro cúbico, 24-90 kg/m3, 50-200 kg/m3, 10-80 kg/m3 tablero de lana de vidri
Color:	Amarillo, amarillo/rosa, azul o personalizado, plateado, blanco, azul marino y gris	Espesor:	25 mm-200 mm, 50 mm 75 mm 100 mm, 30 mm, 25-150 mm, 25 mm/30 mm/50 mm/75 mm/100 mm
Aplicación:	Construcción, calefacción por suelo radiante, construcción, aislamiento HVAC, pared insonorizada	Ancho:	600-1200 mm, 1,2 m, 1 m/1,2 m/1,22 m, 0,6 m, 600 mm
Conductividad térmica:	0,034-0,06 w/mk, 0,032-0,06 w/mk, 0,040 W/mK, ≤ 0,039
Resaltar:	HVAC duct board glass wool , laminated glass wool duct board , air conditioning duct board insulation

Descripción de producto

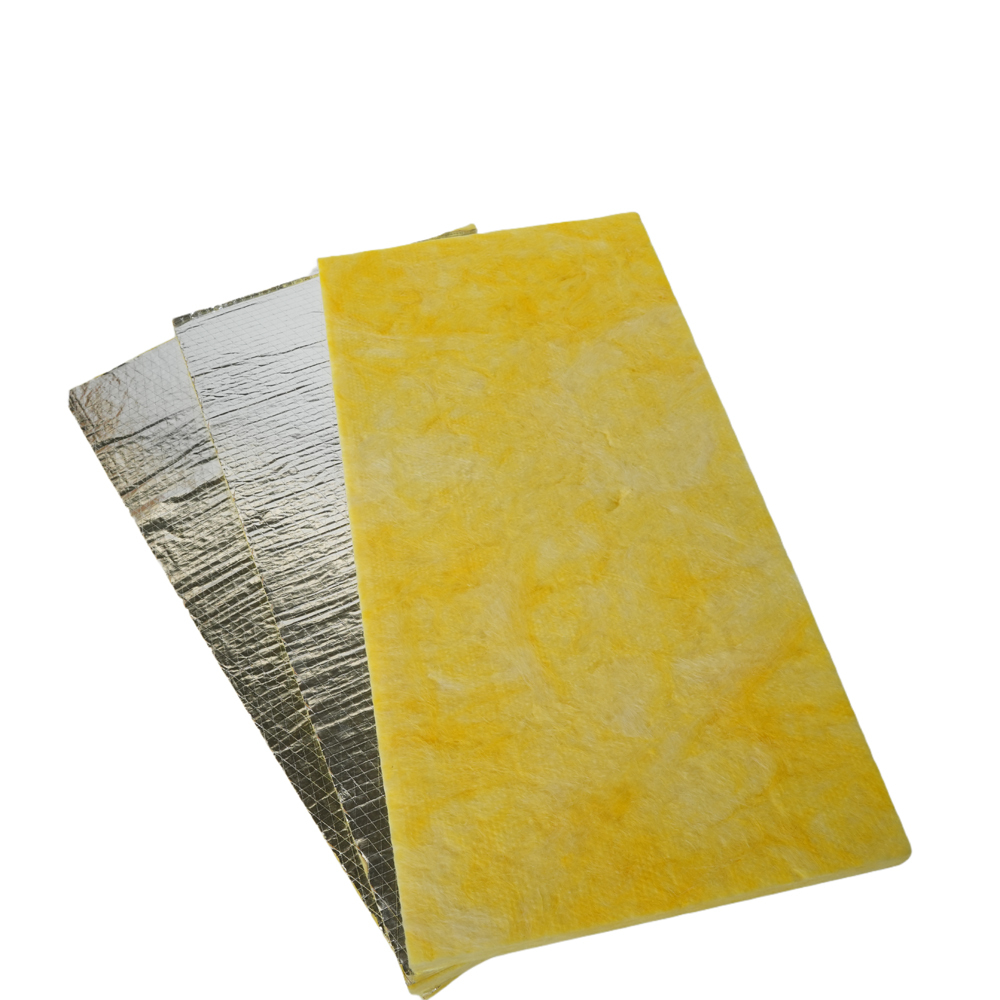

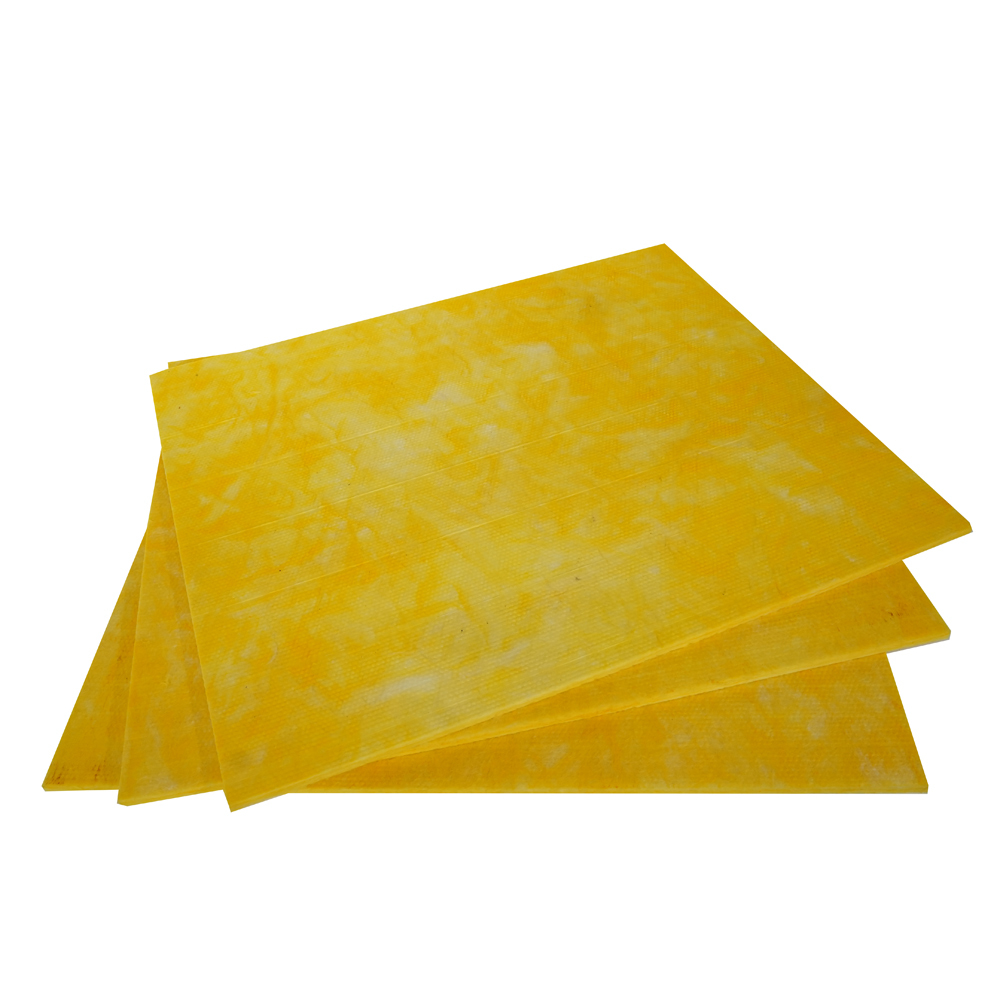

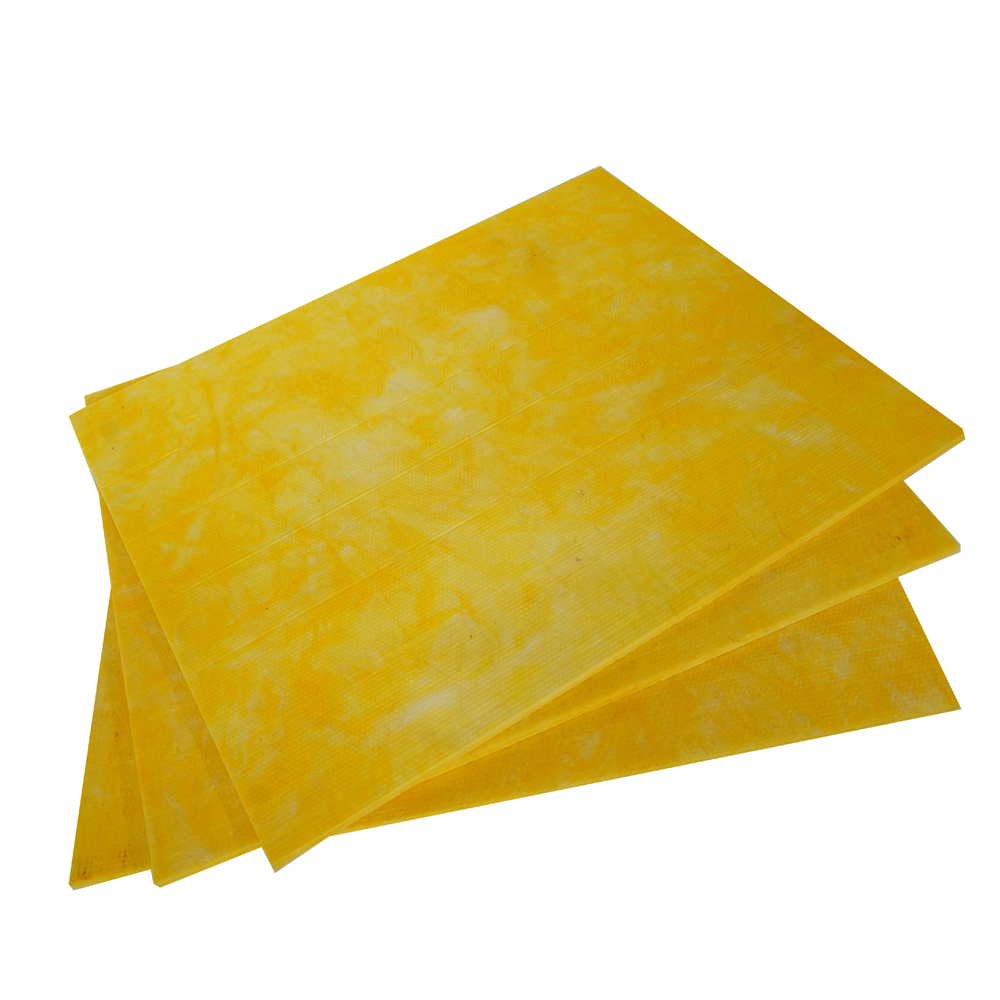

Glass Wool Board

Product introduction of the glass wool board

Engineered specifically for demanding HVAC applications, our FANRYN Glass Wool Duct Board is the ideal choice for fabricating and insulating air conditioning and ventilation ducts. With a higher density range (up to 96 kg/m³) and the option for laminated facings, it provides superior rigidity, acoustic lining, and thermal efficiency for commercial and industrial systems.

Product parameter of the glass wool board

Item	Unit	Index	Standard
Bulk density	kg/m³	24-96	GB/T 5480.3-1985
Average fiber dia.	µm	5.5	GB/T 5480.4-1985
Water content	%	≤1	GB/T 3007-1982
Grade of combustibility		Non-combustible Grade A	GB 8624-1997
Reshrinking temp	℃	≥250	GB/T 11835-1998
Thermal conductibility	w/m.k	0.031-0.042	GB/T 10294-1988
Hydrophobicity	%	≥98.2	GB/T 10299-1988
Moisture rate	%	≤5	GB/T 16401-1986
Sound absorption coefficient		1.03 product reverberation method 24kg/m³2000HZ	GBJ 47-83
Slag inclusion content	%	≤0.3

Product size of the glass wool board

Density(kg/m3)	Thickness(m)	Length (m)	Width (m)	Pcs/packing
24-96	0.025-0.1	0.6-1.25	0.6	5-18
24-96	0.025-0.1	0.6-2.4	1.1-1.25	5-18

Product feature and application of the glass wool board

Duct Board Specific: Designed for fabricating rectangular and oval ductwork, offering both thermal insulation and noise reduction from the inside out.
High-Density Performance: Provides structural integrity and resistance to airflow erosion within ducts, ensuring long-term performance.
Factory-Laminated Facings: Available with Foil-Scrim-Kraft (FSK) for a built-in vapor barrier, reducing on-site labor time and costs.
Non-Combustible Safety: Grade A fire rating ensures compliance with building safety codes for mechanical systems.
Easy Fabrication: Can be easily scored and cut to create precise duct sections and fittings.

HVAC Air Handling Unit Insulation
Fabrication of Double-Wall Ducts
Acoustic Lining for Sheet Metal Ducts
Plenums and Mechanical Room Insulation

Production packing of the glass wool board

The normal packing is plastic bag

OEM is acceptable

Production Facing of the glass wool board

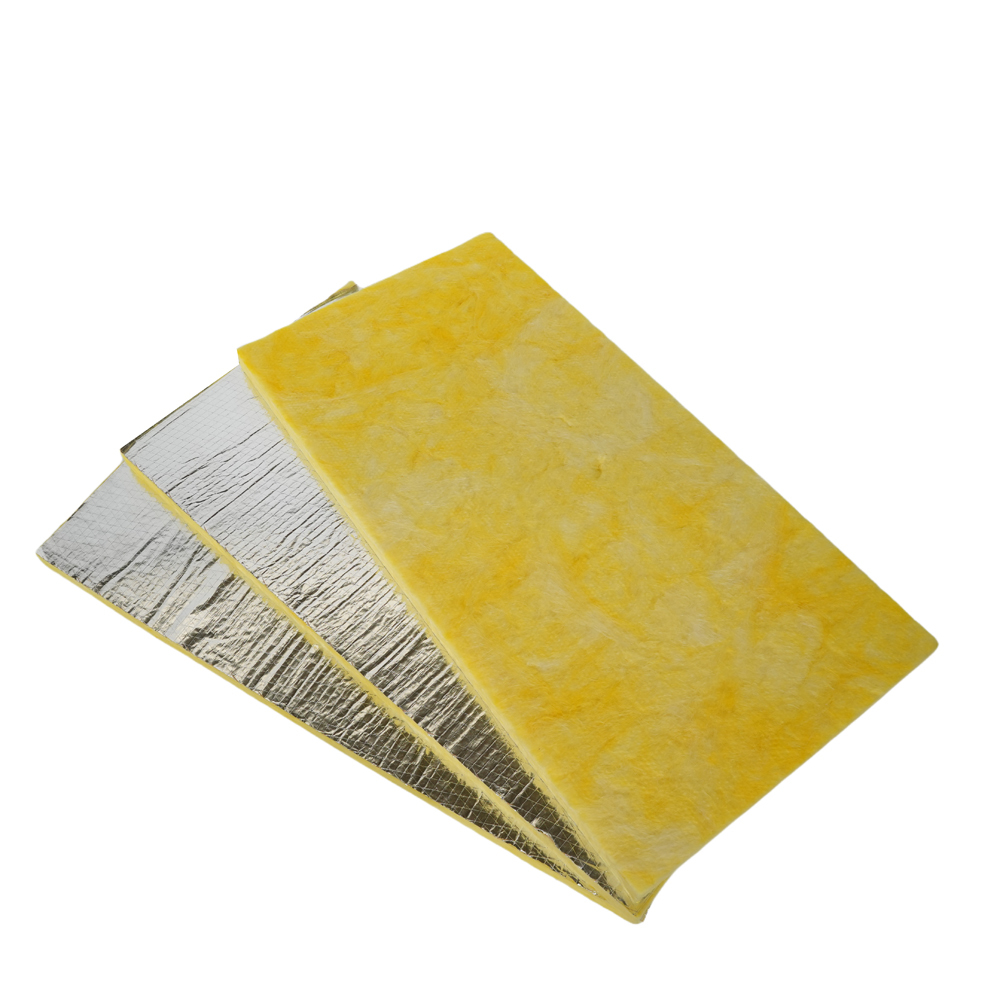

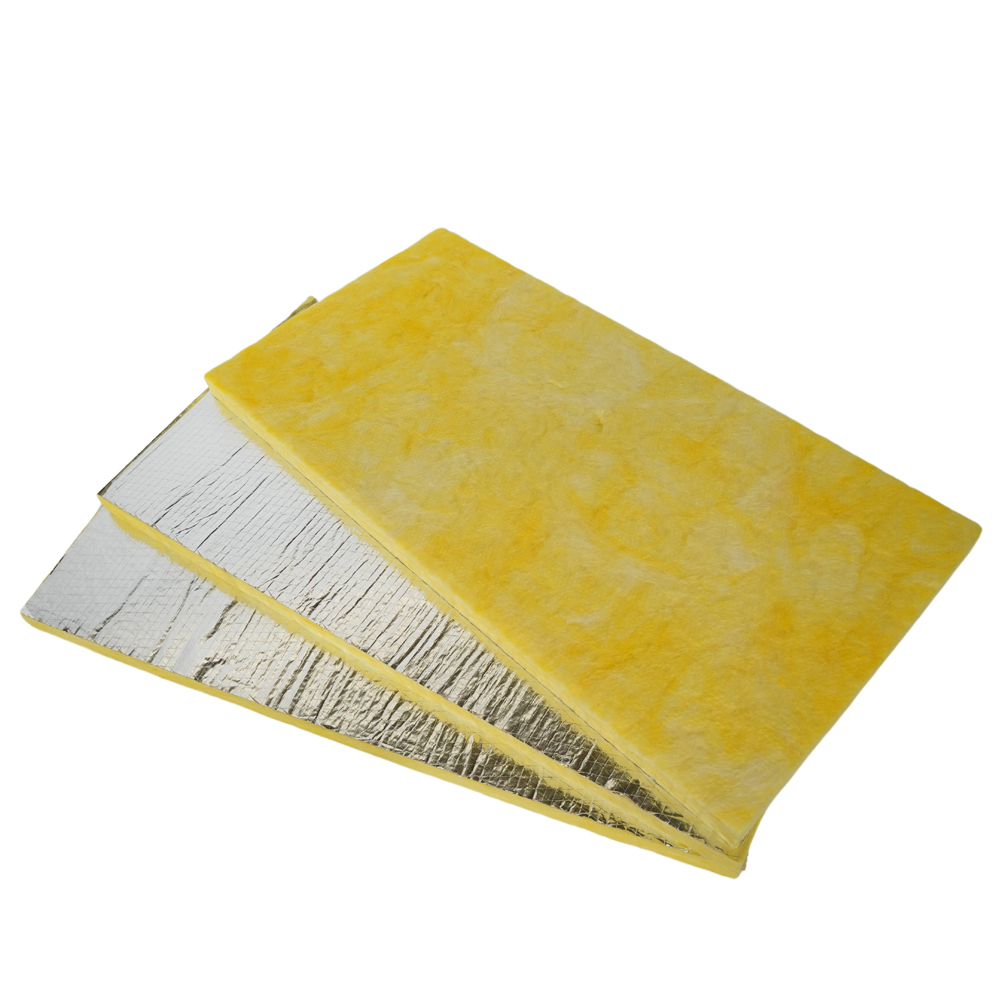

Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
Fiberglass Tissue

FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Plastic bag (Standard Export Packing).

Q3: what is your lead time for one 40HC container order?

A3: Usual 15-20 work days after placing order

Q4: What is your advantage on glass wool board?

A4: Special size can be made according customer’s requirement.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.

etiqueta:

Lugar de origen:	Porcelana
Nombre de la marca:	FANRYN

Detalles de empaquetado:	Bolsa de plástico
Tiempo de entrega:	10 días laborables
Condiciones de pago:	T/T
