FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings

FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings
FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings
Informacion basica
Lugar de origen: Porcelana
Nombre de la marca: FANRYN
Detalles de empaquetado: caja de cartón
Tiempo de entrega: 15 días de trabajo
Condiciones de pago: T/T
Mejor precio Contactar ahora
Información detallada
TemperaturaResistencia: -270°C a 700°C permeabilidad al vapor: Alto
coeficiente de absorción acústica: 0.85 Fuerza de compresión: ≥10 kPa
aguaAbsorción: <1% Impacto ambiental: Reciclable y respetuoso con el medio ambiente
Material: Lana mineral resistencia al fuego: No combustible, Clase A1
Conductividad térmica: 0,035 W/m·K Nombre de producto: Cobre de lana mineral aislante térmico
Método de instalación: Fijación mecánica o adhesivo Dimensiones: Normalmente 600 mm x 1200 mm
Aplicaciones: Aislamiento de edificios, aislamiento industrial, sistemas HVAC. Densidad: 40-200 kg/m³
Espesor: 25 mm a 150 mm
Resaltar:

Fiberglass acoustic ceiling tiles

,

Thermal insulation ceiling panels

,

Modern building ceiling tiles

Descripción de producto

FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings

FANRYN Acoustic & Thermal Ceiling Tiles deliver a complete solution for modern interior needs. With superior sound absorption (NRC 0.9–1.0) and thermal resistance ≥0.5 (m²·K/W), these tiles enhance comfort while reducing energy costs.

FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings 0

FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings 1

Technical Data
Material Fiberglass wool board
Density 90-130kg/m3
Face Painting laminated with decorative fiberglass tissue or PVC facing
Color White, black and others to order
Fire-resistant Class A
Thermal-resistant ≥0.5 (m2·k/w)
NRC 0.9-1.0
Humidity Dimensionally stable with RH up to 95% at 40℃,no sagging, wrapping or delaminating
Moisture rate ≤1%(JC/T670-2005)
Environmental impact Tiles and packing are fully recyclable
safety Limit of radionuclides in building materials specific activity of 226Ra: Ira≤1.0 specific activity of 226Ra, 232Th, 40K: Ir≤1.3
Key Features

  • Dual Performance: Excellent acoustic and thermal properties.

  • Aesthetic Flexibility: Available in multiple colors and finishes.

  • Easy to Install: Works with inch or centimeter grid systems.

  • Eco-Conscious: Fully recyclable and safe for indoor use.

Applications

Swimming pools, spas, kitchens, bathrooms, and industrial settings.

FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings 2

Packing and Loading Quantity for Containers:
SIZE CARTON/40HQ PIECES/CARTON M2/40HQ
600*600*15MM 532 20 3830.4
600*1200*15MM 266 20 3830.4
600*600*20MM 532 15 2872.8
600*1200*20MM 266 15 2872.8
600*600*25MM 532 12 2298.24
600*1200*25MM 266 12 2298.24

FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings 3

Installation:
  • use exposed grids, grids width:15mm or 24mm
  • tiles are easy to trim and install
  • both inches and centimeters grids are available

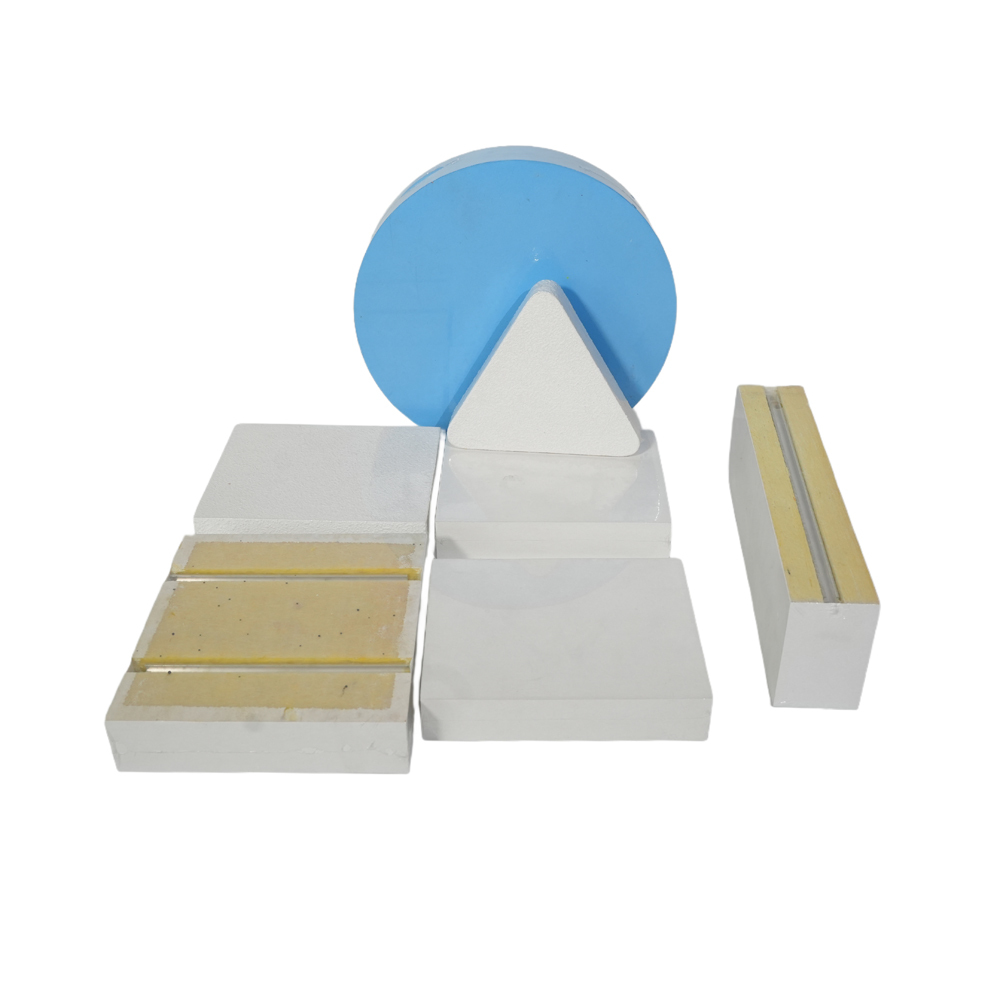

Facing on glass wool board:

FANRYN Acoustic & Thermal Ceiling Tiles – All-in-One Performance for Modern Buildings 4
